MQ-100X: Quantum Integral Sensor with Handheld Meter

Updated:2025-03-13

Brand: Apogee
Model: MQ-100X
Description: MQ-100X quantum integral sensor with hand-held instrument adopts Apogee's older and more economical photoelectric detector, which is very suitable for accurately measuring PAR, metal halide and high-p
Data download

Feedback
WeChat

QQ

Online Service

Product Details

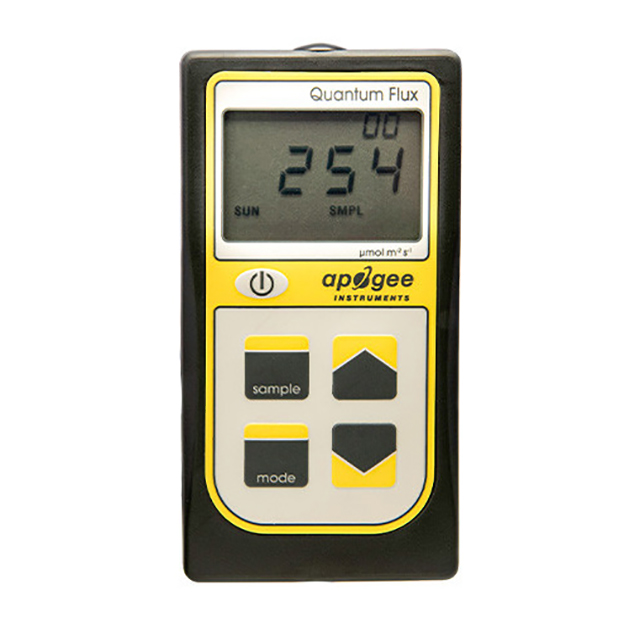

Overview of MQ-100X Quantum Integral Sensor with Handheld Meter

User 's Manual

MQ-100X quantum integral sensor with hand-held instrument adopts Apogee's older and more economical photoelectric detector, which is very suitable for accurately measuring PAR, metal halide and high-pressure sodium lamp in sunlight. This instrument is equipped with a laboratory level photosynthetic photon flux density (PPFD) optical detector, which is accurately calibrated to measure the light intensity of specific color wavelengths emitted by sunlight, MH and HPS light used by plants for photosynthesis, and the unit isμ mol m ˉ2 s ˉ1 。

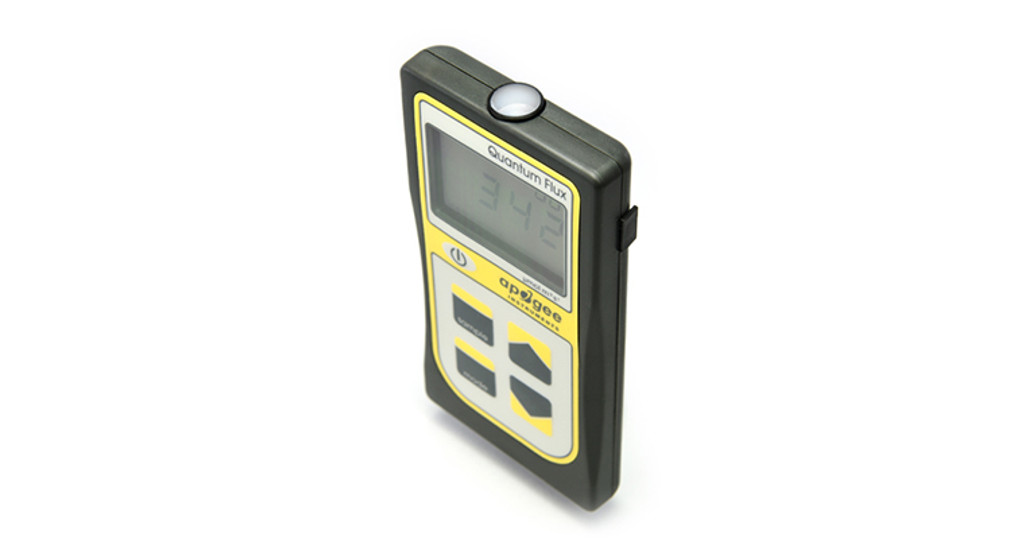

Robust and easy to use: The MQ-100X integrates the sensor onto the top of the instrument, making it easy to carry and spot check the light. Display real-time readings, record samples, and record average intensity and daylight integration (DLI) measurements.

Accurate and stable calibration: the instrument combines the intensity of all photons between 400 and 700 nm under sunlight, metal halide and high-pressure sodium lamp to give a value ofμ mol m within 5% uncertainty ˉ2 s ˉ1is a single PAR reading in units. Unlike amateur PAR instruments that are sometimes used out of the box but quickly lose calibration, Apogee instruments have accurate and stable calibration, with an annual drift rate of less than 2%.

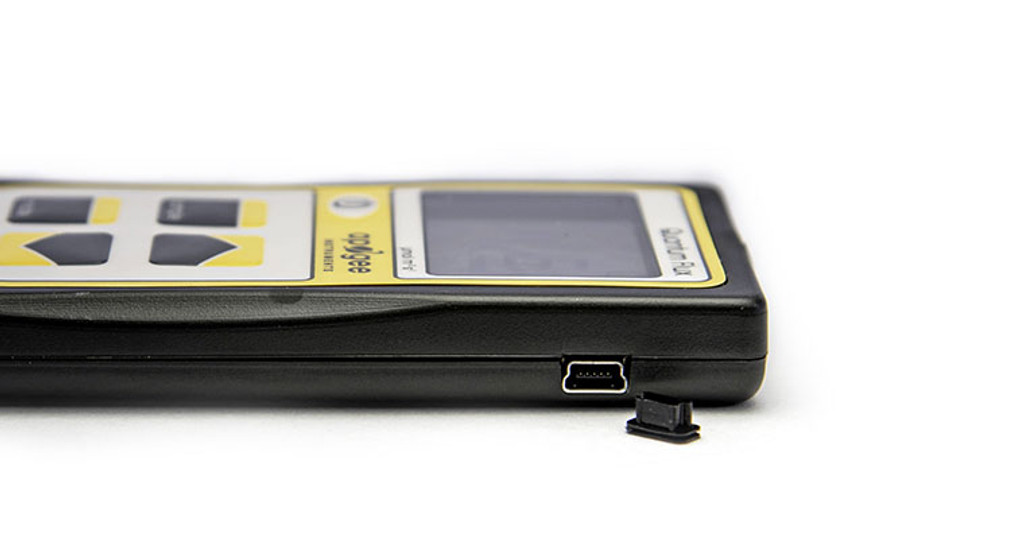

Three measurement modes: the instrument has point measurement, sampling and logging modes, and records inmol m ˉ2 s ˉ1is the unit of comprehensive daily total. The sampling mode will record up to 99 manual measurements, and the logging mode will turn the instrument on and off, making measurements every 30 seconds. Every 30 minutes, the instrument will take an average of 60 30 second measurements and record the average value in the memory, up to 99 average values. Once filled, it will overwrite the old measurement with the new one. The daily light integration will be recorded from 48 average measurements to obtain a daily reading, which can be downloaded via the Apogee AC-100 cable and used with the accompanying Apogee AMS software.

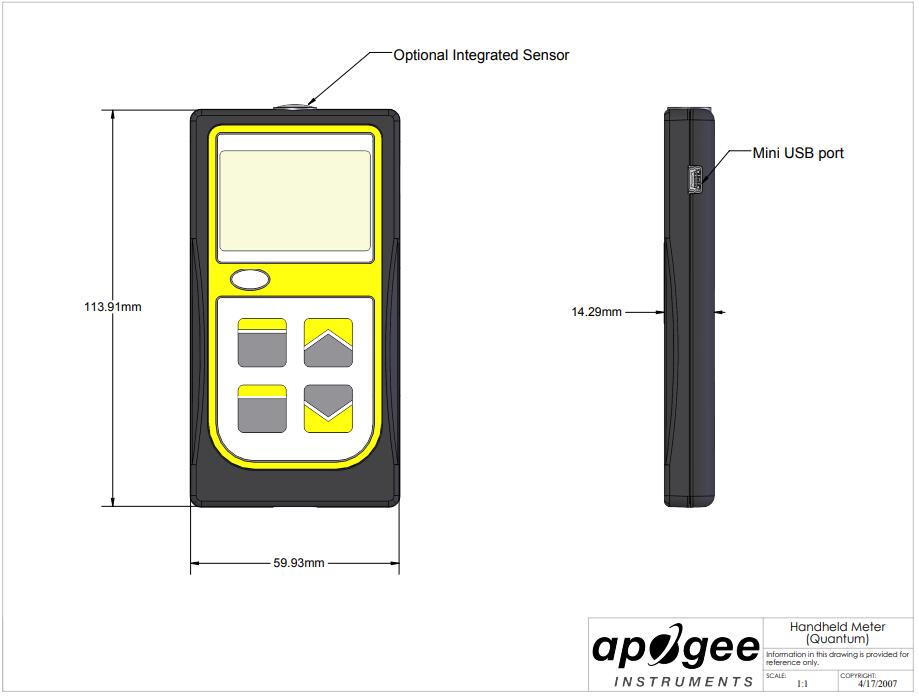

MQ-100X drawing:

MQ-100X specification:

Calibration Uncertainty	± 5 %
Measurement Repeatability	Less than 1 %
Non-stability (Long-term Drift)	Less than 2 % per year
Non-linearity	Less than 1 % (up to 2500 μmol mˉ2 sˉ1 )
Response Time	Less than 1 ms
Field of View	180?
Spectral Range	370 nm to 650 nm (wavelengths where response is greater than 50 % of maximum)
Directional (Cosine) Response	± 5 % at 75? zenith angle
Temperature Response	-0.04 % per ℃
Operating Environment	0 to 50 ℃, less than 90 % non-condensing relative humidity up to 30 ℃, less than 70 % non-condensing relative humidity from 30 to 50 ℃, separate sensors can be submerged in water up to depths of 30 m
Meter Dimensions	126 mm length, 70 mm width, 24 mm height
Mass	150 g
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
