Datasheet User's Manual

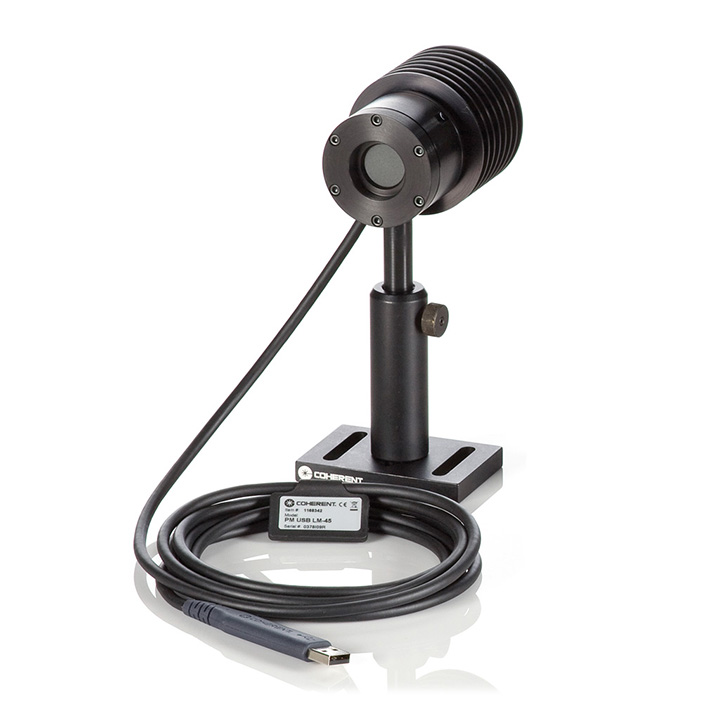

This PowerMax-RS LM-45 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098320) is available.
These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.
SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).
Key Features:
100 mW to 25W range
19 mm diameter active area
Beam position measurement
Capable of 45W intermittently for up to 5 minutes
Spectrally flat broadband coating
0.25 to 10.6 μm spectral range
Convective air-cooled
Fiber adapters available
Direct RS232 interface
ISO 17025 accredited
Specifications
