Datasheet User's Manual
The pressure transducers of the PD-10L series have been developed to measure differential pressure. These OEM pressure transducers have a single silicon diaphragm in their interior, which is pressurised from both sides and measures the pressure difference directly. This design enables them to measure tiny pressure differences even at an extremely high line pressure.
Pressure Ranges：0…0,1 to 0…30 bar
Line Pressure：200 bar
Accuracy：± 0,25 %FS
Long Term Stability：± 0,15 %FS
Dimensions：? 19 mm x 26 mm
Temperature Range：-40…125 °C

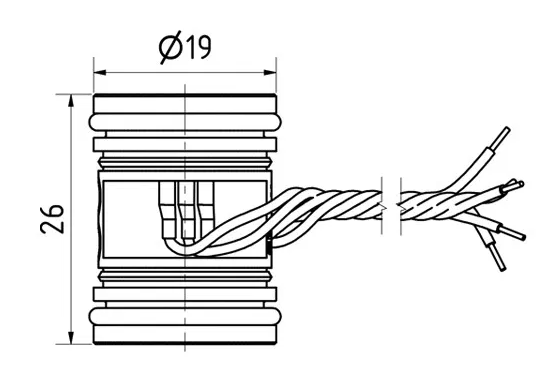

Sketch
